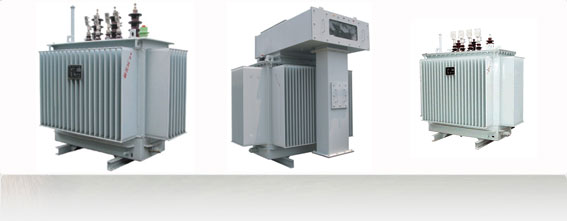

Distribution Transformers :



Features :
  • Low Loss
  • Low Noise
  • Excellent Short - circuit with stand capacity
  • Low partal discharge
  • Enhanced life expectancy QRE Produes oil immersed distribution transformers both sealed type and non - sealed type with all standard fittings.
  • Good Aesthetic
  • No Leakage


Technical Specification
  • Standard : IEC 60076
  • Voltage level: 11kV, 22kV, 33kv
  • Mode of voltage regulation: Off crcuit
  • Tapping range:± 7.5%, ± 5% in steps of 2.5%
  • Power Capacity: 4MVA
  • Frequency: 50Hz
  • Phase No.: three phases
  • Vector Group: Yyn0 or Dyn11
  • Type of cooling: ONAN
  • Insulation level: Asper / IEC
  • Termination: Open Bushing / Cable box / Bus duct
